It complies with GB/T 4893.4, ISO 2409, ASTM D3359 and BS 3962-6 standards, and has the characteristics of convenience and simplicity. It is suitable for the adhesion fastness of the coating surface paint film to the substrate or the fastness of the base coat in combination with each other.
Model | Product Name | Scratch length（mm） | Nongber Ben Gridkatz (Streep)） | spacing（mm） |

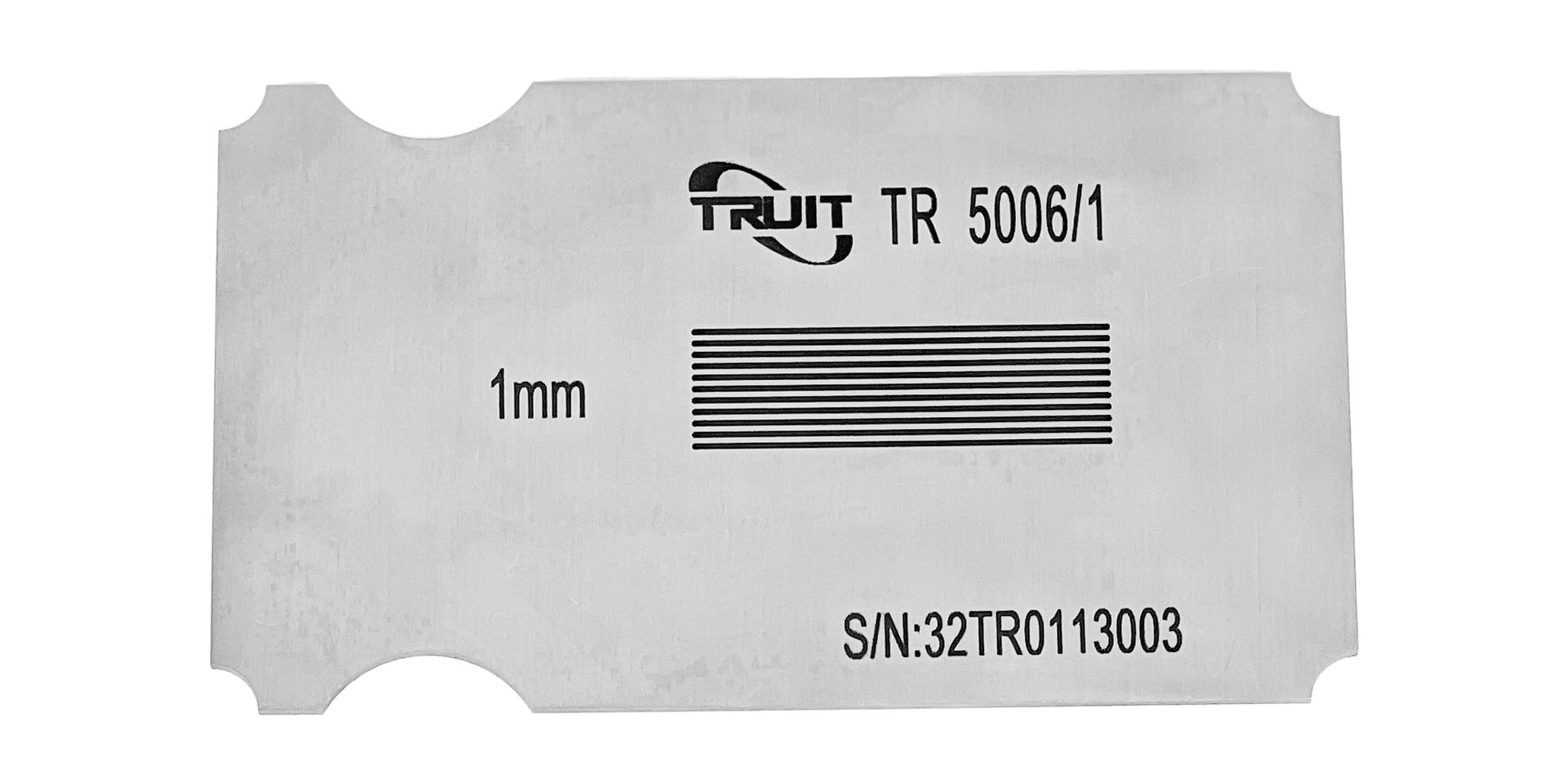

TR 5006/1 | Hatch Guaged | 35 | 11 | 1 |

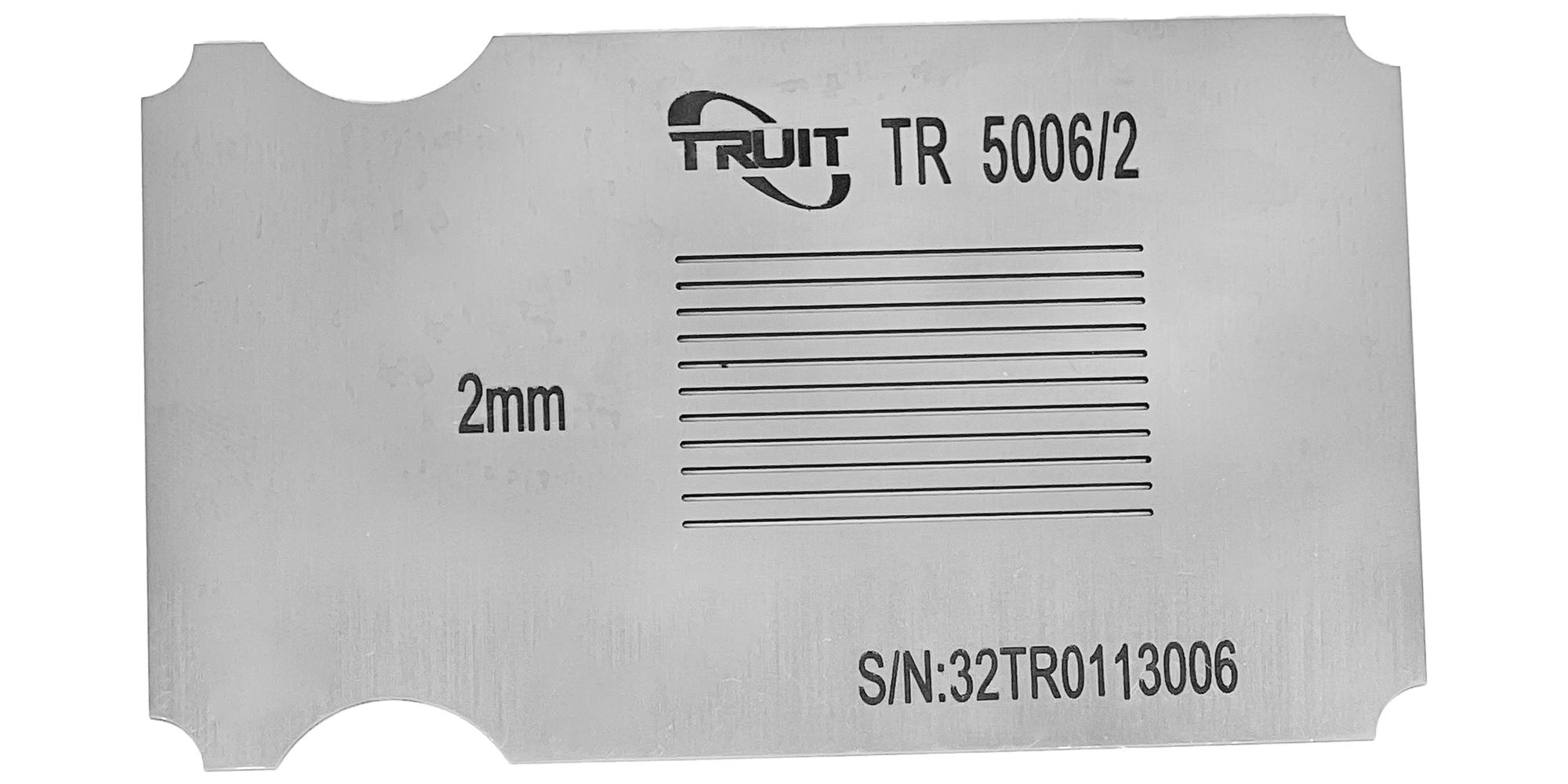

TR 5006/2 | Hatch Guage | 35 | 11 | 2 |

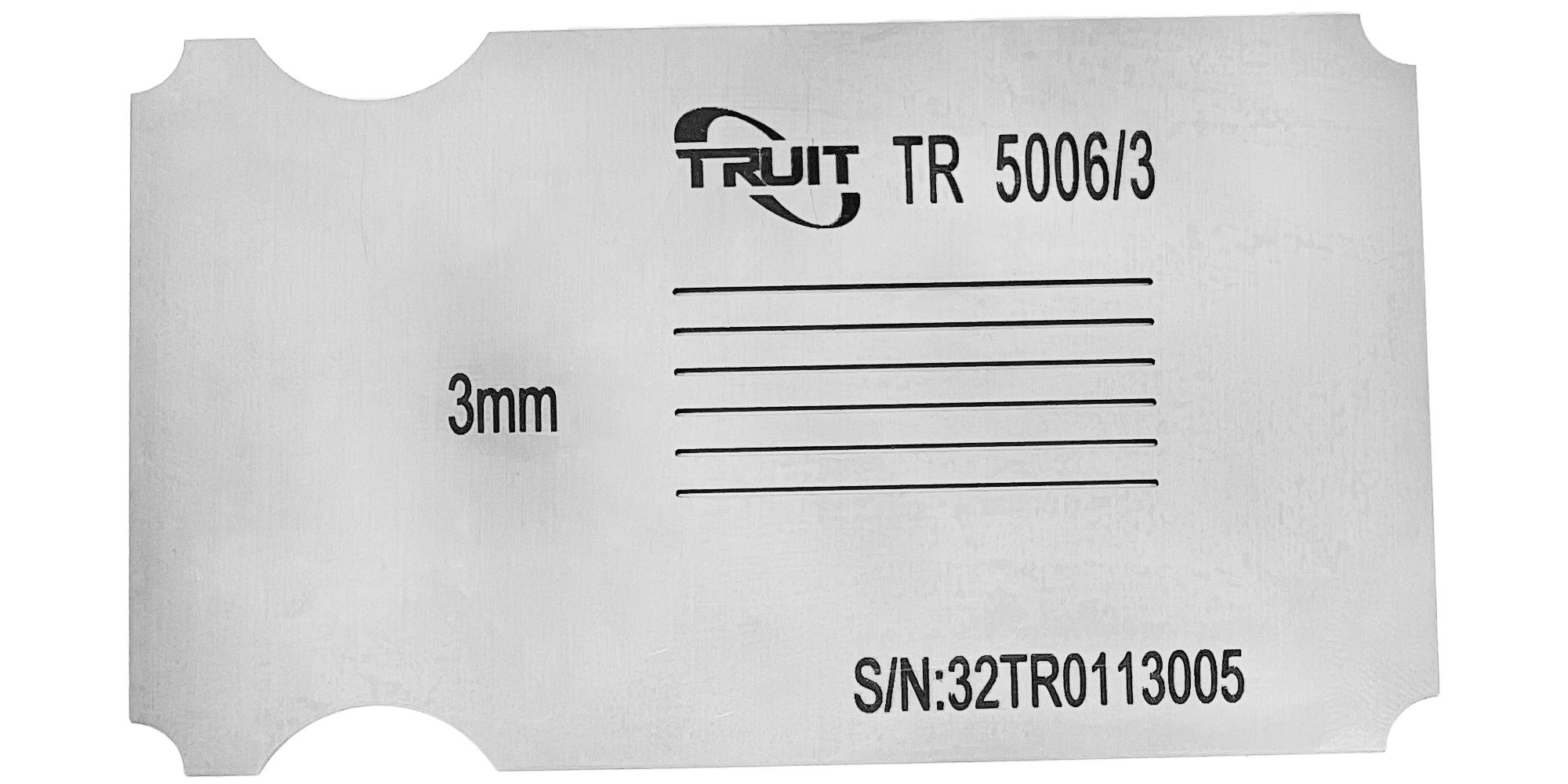

TR 5006/3 | Hatch Guage | 35 | 6 | 3 |
TR 5006/A | Multifunctional Hatch Guage | 23~35 | 7、11 | 1、1.5、2、3 |
·A variety of specifications are available
·Made of 304 stainless steel
·High spacing dimensional accuracy
· A variety of specifications are available
·Supporting cutting blade: the blade angle is 15°~30°, and the blade thickness is 0.43mm±0.03mm
·A nylon brush
·A variety of specifications are available
·Made of 304 stainless steel
·High spacing dimensional accuracy
