The advantages of TR 2001 series dispersing, mixing and sanding multi-function machine as one. Widely used in coatings, dyes, inks, pigments, papermaking, cosmetics, food, resins, adhesives, emulsions, medicine, petroleum, pesticides, daily chemicals and other fields of liquid and liquid coagulation materials for high-speed stirring, grinding, dissolving and dispersing.
Minimal clampingφ50mm

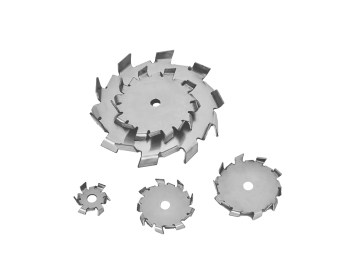

Disperse disk
Model | Specification |
TR 2001/PA1-030 | Φ30mm, thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-035 | Φ35mm, thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-040 | Φ40mm, thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-050 | Φ50mm，thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-060 | Φ60mm, thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-080 | Φ80mm，thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-100 | Φ100mm，thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-120 | Φ120mm，thickness 1.2mm, 304 stainless steel |
TR 2001/PA1-150 | Φ150mm，thickness 1.2mm, 304 stainless steel |
Grinding discs
Model | Specification |
2001/P3-040 | Φ40mm |
2001/P3-060 | Φ60mm |

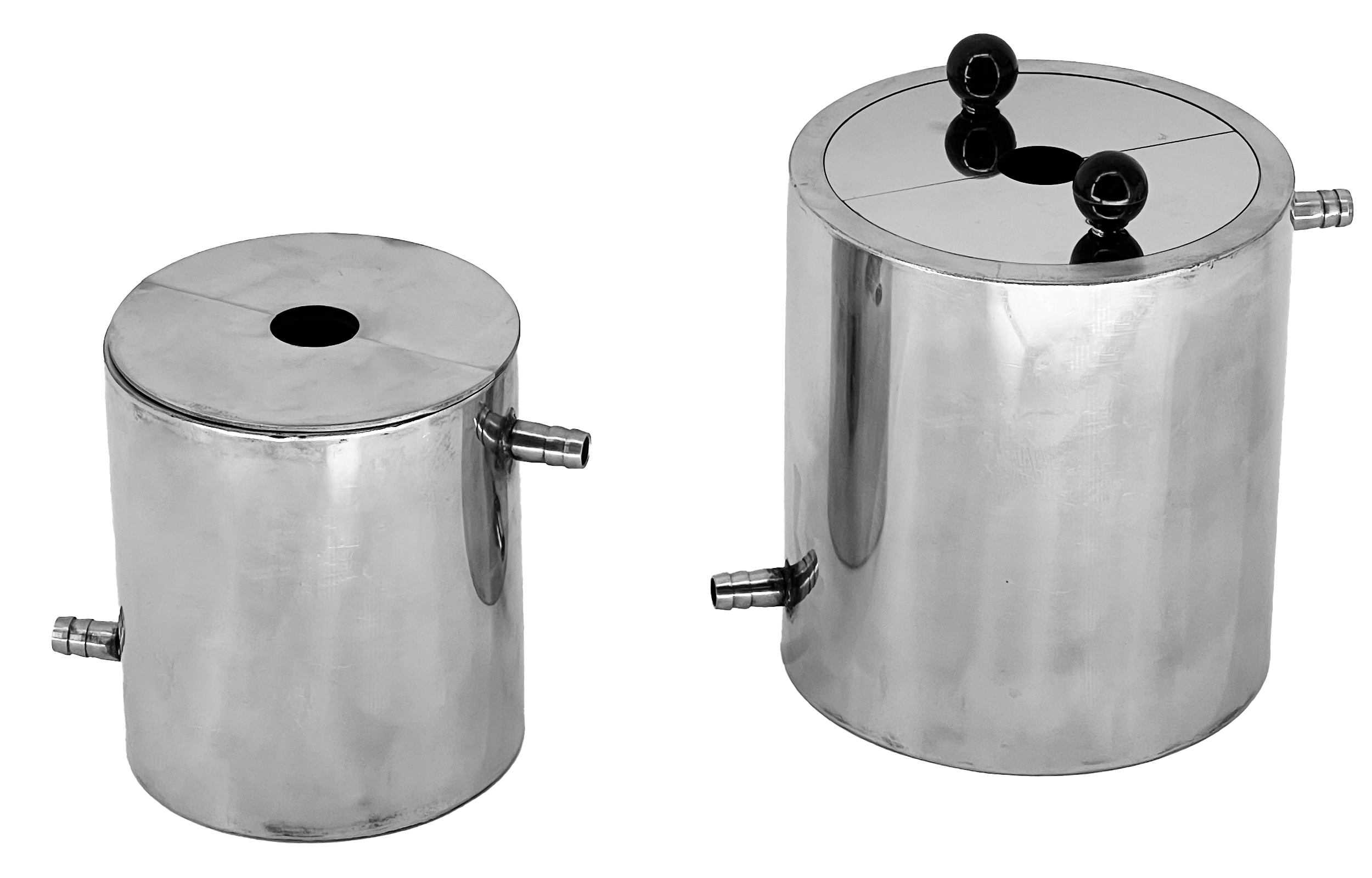

Disperse tanks
Model | Specification |
TR 2001/P2/1 | Double layer, volume about 1L, 304 stainless steel |
TR 2001/P2/1.5 | Double layer, volume about 1.5L, 304 stainless steel |
TR 2001/P2/2 | Double layer, volume about 2L, 304 stainless steel |
TR 2001/P2/3 | Double layer, volume about 3L, 304 stainless steel |
TR 2001/P2/5 | Double layer, volume about 5L, 304 stainless steel |
TR 2001/P2/10 | Double layer, volume about 10L, 304 stainless steel |
TR 2001/P2/20 | Double layer, volume about 20L, 304 stainless steel |
Parameters Model | TR 2001/5 | TR 2001/7 |
Motor power(W) | 550 | 750 |
Speed Control Range (rpm) | 30-9000 | 30-6000 |
Lifting method | Manual | |
Lifting stroke(mm) | 320 | |
power supply | 220V, 50Hz | |
Minimum clamping (mm) | Φ50 | |
Maximum stirring volume (L) | 5 | |
Standard | 1.5L tank, 1 dispersing disc of 35, 50 and 60mm | |
Overall dimensions (LxWxH,mm) | 420x440x920 (motor in lowest position) | |
Weight（KG） | 21 | |
·Wide speed regulation range, the highest spindle speed can reach 9000 rpm
·Easy display and operation, using frequency converter speed regulation
·The use of high quality motor, the use process can be guaranteed in a certain temperature range
·Low noise, small vibration, long service life
·The barrel adopts double-wall water circulation and quick coupling design
·Users can freely disassemble and replace the dispersion disc or grinding disc
·Maximum dispersion tank diameter: 200mm
