TR 3501 Drawdown Plate

In order to make the coating film have better repeatability and proofing effect, Tengrui Zhike provides a variety of flat film making platforms.

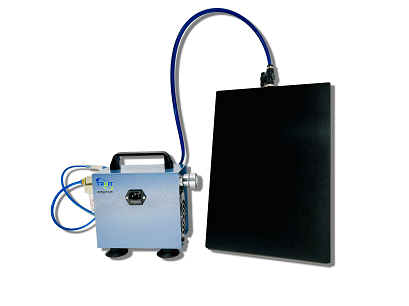

1. Vacuum coating table

The vacuum coating table adopts the principle of vacuum adsorption, and the substrate is smoothly adsorbed on the vacuum coating table for various film making

The working surface is ground with ultra-high precision, and the surface is anodized. Equipped with a dedicated oil-free vacuum pump with adjustable vacuum switch

Material: high-grade aluminum alloy

Aperture: 1mm

Hole spacing: 18mm

Number of holes: 176

Vacuum pump voltage: 220V

Vacuum pump power: 150W

Vacuum plate dimensions: 360mmx250mm

Vacuum pump dimensions: 260mmx210mm

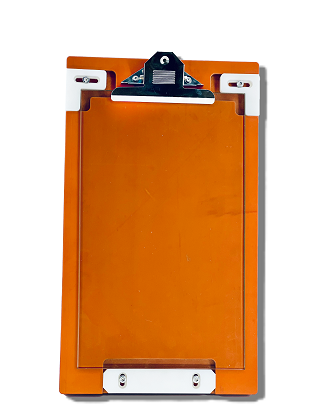

2. Bakelite coating table

Bakelite dimensions: 460mmx270mm, adjustable size: maximum 390mmx255mm, minimum 380mmx205mm, thickness 25mm, glass size: 230x380x6mm

3. Glass coated plate

Please refer to the ordering information for various specifications
