Test the accuracy of international
standard samples: test submicron and
Micro meters of international standard
samples, the results are highly
consistent with the nominal values.
International standard sample(Duke) Nominal value | BT-9300SE Measured value |
NanosphereTM Size Standards 400nm | 398nm |
Duke Standards TM 15μm | 14.97μm |
Solvent-based circulating dispersion system:：made of stainless steel, polytetrafluorine.
Ethylene and quartz sample cells with a volume of 80ml or 200ml are suitable for all organic solvent media.

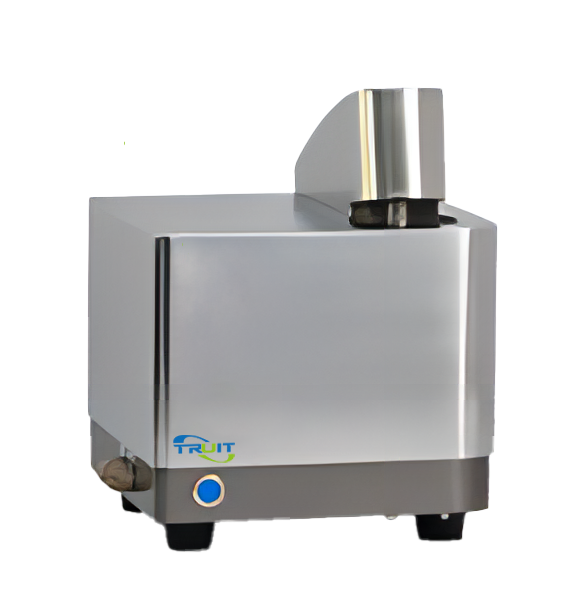

TR 1860--Laser Particle Size Analyzer
project | Performance indicators | project | Performance indicators |
Measuring range | 0.1-1000μm | resolution | Grade A (JJF 1211-2008) |
Repeatability error | ≤ 1% (deviation of GB sample D50) | Automated testing | Automatic alignment, automatic testing, automatic cleaning |
Accuracy error | ≤ 1% (deviation of GB sample D50) | circulatory system | Water: 600ml, flow rate 3000-8000ml/min; Solvent: 80 or 200ml, flow rate 1500-4000ml/min |
laser | Imported semiconductor laser, life > 25000 hours | Ultrasonic disperser | Dry burn-proof type, 50W |
Number of probes | Forward, sideways, 80 total | Report format | PDF、BMP、Word、Excel、JPG |
Pharmaceuticals, lithium battery positive and negative electrode materials, graphite, heavy calcium, talc, kaolin, alumina, coatings, etc
Other non-metallic mineral powders: such as light calcium, wollastonite, brucite, barite, mica powder, bentonite, diatomaceous earth, clay, silica, garnet, zirconium silicate, zirconia, magnesium oxide, zinc oxide, etc
Other metal powders: such as zinc powder, molybdenum powder, tungsten powder, magnesium powder, copper powder, rare earth metal powder, alloy powder, etc
Other powders: such as catalysts, phosphors, cement, abrasives, food, dyes, river sediment, ceramic raw materials, chemical materials, nanomaterials, papermaking filler coatings, various emulsions, etc
