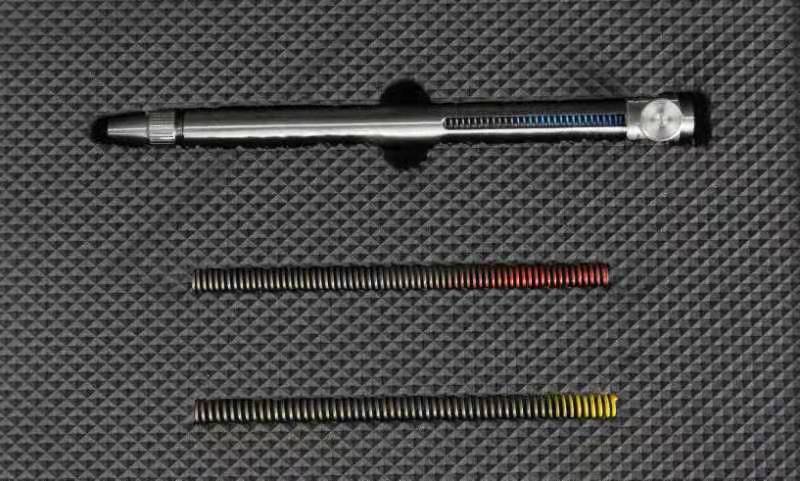

The TR 5170 spring hardness pen is used to measure the hardness of protective coatings, lacquer films, plastic coatings, wood or metal surfaces, which can be flat or curved, regardless of size. The instrument is always ready to use and can be carried in a pocket for a variety of hardness tests. Uniform hardness and coating quality facilitate fast production, the instrument complies with the routine quality control of protective coatings, and even during the production process, provides engineers, plumbers, monitors and other relevant personnel with a test instrument that can meet the needs of a variety of smooth production runs.
Test sticks | 1 root |
Test head 0.75 mm (BOSCH) | 1 pc |
Test Spring: 0-3N (Blue Mark) 0-10N (Red Mark) 0-20N (Yellow Mark) | One for each |
Instructions | 1 serving |
Boxes | 1 pc |
TR 5170--Spring hardness meter
Pressure Springs: | spring steel |
Test Head: | Tungsten carbide |
Test Head Diameter: | 0.5 mm (Opel) optional 0.75 mm (Bosch) standard 1.0 mm (according to ISO 1518 and DEF) optional |
Range: | 0-3N (blue mark) 0-10N (red mark) 0-20N (Yellow Mark) |
Length: | 160 mm |
weight | Net weight approx. 250 g |
·Easy to carry, use at any time,
·Measure the surface of the product regardless of the size of the test
·3 test ranges
·Three test heads can be configured
